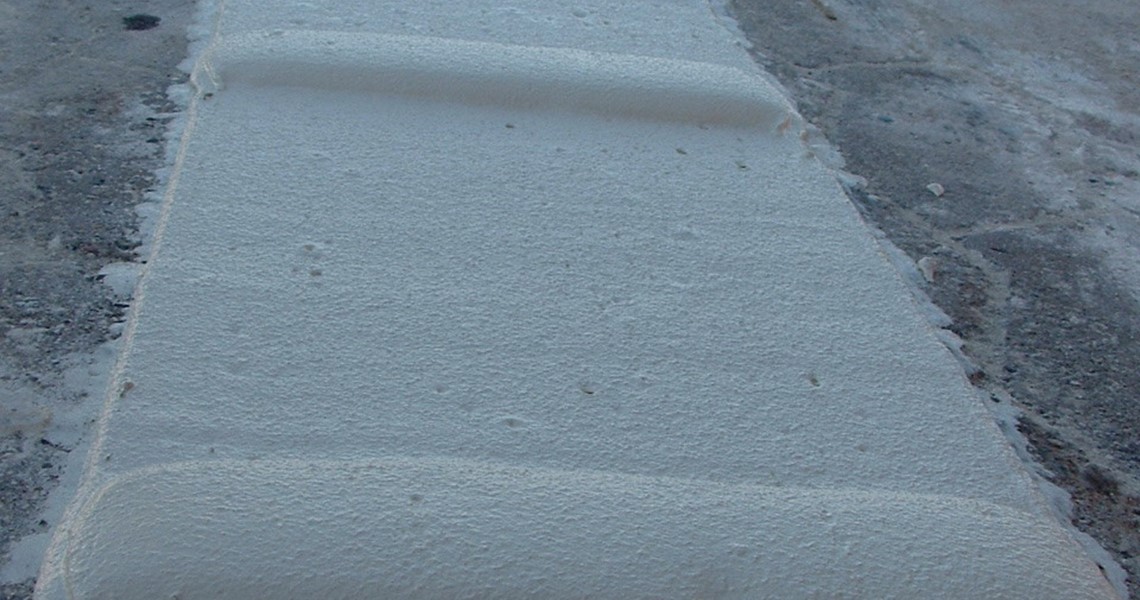

The Rib line application method is used for applying profiled markings formed by a combination of ribs over line. The rib line application can be applied with thermoplastic.
Profiled road markings are the newest road marking technology where a part of the road marking typology is raised over the road surface. This type of markings are becoming more and more popular because of the increased road safety it provides.
Read more below

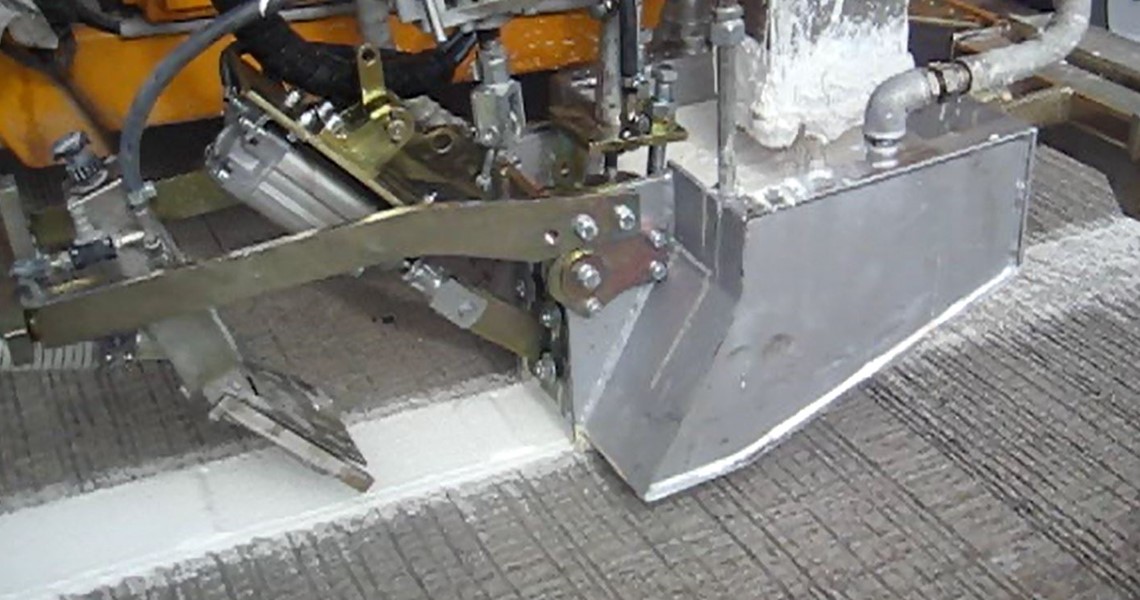

Thermoplastic rib line equipment
Line types: Rib line (ribs on line)
*This box can apply 3 different line types: ribs only, line only or ribs on a line
- Equipped with a sensor for tracking the material quantity in the rib line box
- Automatic filling when the material capacity is the rib line box is under 50%
- One filling system that can fit all sizes of rib line boxes
- Available in the following widths: 10, 12, 15, 20, 24, 25 and 30 cm
- Total height of line with rib is usually between 8 to 12 mm
- The lines are recommended to be as thin as possible when combined with ribs (approx. 1,5 - 2 mm)
- The usual application speed for applying rib line is 1-3 km/h, while for screed application is up to 5 km/h
If you need to only apply ribs or other extruded markings, check out the Borum thermoplastic extruder.
